When building web applications, you will sometimes need to work with audio and/or video inputs. You'll need to understand the MediaStream API, which is the web API that supports streaming both audio and video information. In this post, we'll cover the basics of the MediaStream API.
Getting Started
To get started, you'll need to gain access to the user's audio/video devices which provide data in a 'stream.' A common use case would be getting access to the user's microphone and camera. One of the most common ways to do this is through the getUserMedia method that is built into the browser. This post is more about understanding the different parts of the API. To see this method used in action, refer to Kevin's post about getting audio in the browser.
Let's take the following code, insert it into an HTML file, and then open that file in the browser.
<!DOCTYPE html>
<html>
<body>
<h1>Getting Started With MediaStream</h1>
<script>
navigator.mediaDevices
.getUserMedia({ audio: true })
.then((stream) => {
console.log('MEDIA STREAM: ', stream)
})
.catch((err) => {
alert('PERMISSION DENIED')
})
</script>
</body>

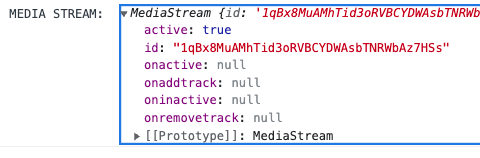

</html>This will prompt you to allow access to the microphone on your machine. If you reject it, you'll get an alert saying PERMISSION DENIED. If you allow that, then you will see the following in your console:
As you can see, there are several properties and methods available on the MediaStream object. Before we dive into these, I want to clarify a couple of definitions.
- stream: A stream of media content. Regarding what we'll be discussing, this refers to the stream of information coming from a user's device. The stream will be coming from either the device's microphone or the camera, or both at the same time. A stream will consist of one or more 'tracks.'
- track: A
trackis a piece of media within a stream. These are typically audio or video tracks. If we get access to both a microphone and a camera, our stream will consist of both an audio and a video track.
Properties
- activeThe first one we see is the
activeproperty. This property is simply a boolean value indicating if any part of the MediaStream object is currently active or being used. Most MediaStream objects you'll encounter will contain audio and/or video tracks. If any of these tracks isactive,then theactiveproperty on the MediaStream object will be true. - idThe other property available on our MediaStream object is the id, a unique identifier for the object and contains 36 characters. This will be helpful if you need to keep track of multiple streams and do different things with them.
Methods

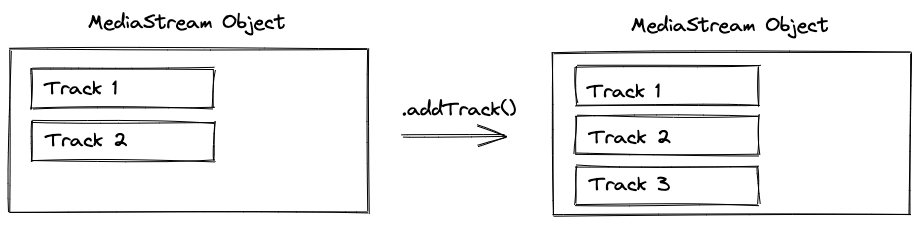

- addTrackThis method takes in a
MediaStreamTrackas an argument and adds it to the MediaStream object.
getTracks
This returns a list of all MediaStreamTrack objects associated with the stream. To test it out, let's add the getTracks method to our code. I've included the video: true in the constraints so we can see multiple tracks.
<!DOCTYPE html>
<html>
<body>
<h1>Getting Started With MediaStream</h1>
<script>
navigator.mediaDevices
.getUserMedia({ audio: true, video: true })
.then((stream) => {
console.log("tracks", stream.getTracks());
.catch((err) => {
console.log("ERROR", err);
alert("PERMISSION DENIED");
});
</script>
</body>

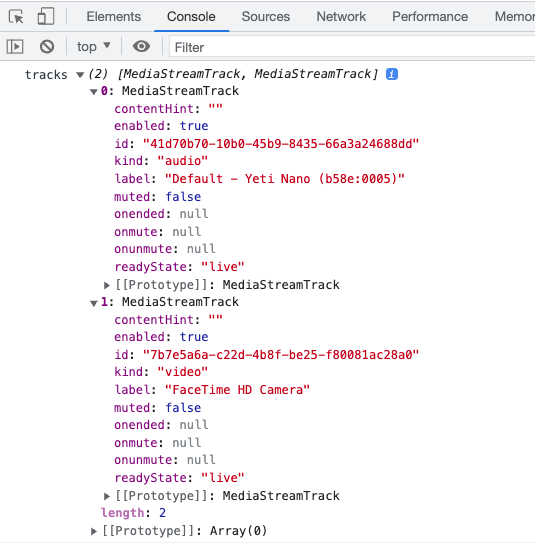

</html>You can see in the screenshot below that we get both the audio and the video tracks showing:
- getAudioTracksThis returns a list of
MediaStreamTrackobjects that are audio types. If we used this instead ofgetTracksabove, we would have gotten the list with only the audio track showing. - getVideoTracks This returns a list of
MediaStreamTrackobjects that are video types. - getTrackById This method takes in a string and will return the track from the MediaStream object with the corresponding id.
<!DOCTYPE html>
<html>
<body>
<h1>Getting Started With MediaStream</h1>
<script>
navigator.mediaDevices
.getUserMedia({ audio: true, video: true })
.then((stream) => {
const trackId = stream.getAudioTracks()[0].id;
console.log("getTrackById", stream.getTrackById(trackId))
.catch((err) => {
console.log("ERROR", err);
alert("PERMISSION DENIED");
});
</script>
</body>

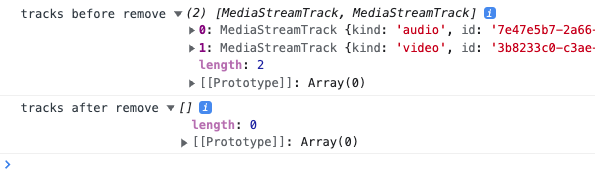

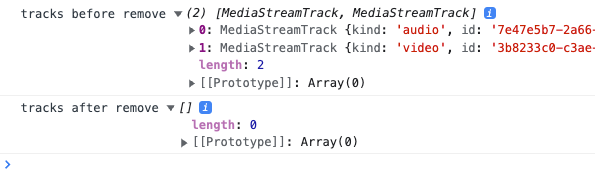

</html>- removeTrack This method removes the given track from the
MediaStreamobject. When we add a button to remove the track to our code and then log theMediaStream.getTracksto the dev tools console, we can see it is no longer there. If we were displaying a video stream to a div on our page and removed the video track, then the stream would no longer appear.
<!DOCTYPE html>
<html>
<body>
<h1>Getting Started With MediaStream</h1>
<script>
navigator.mediaDevices
.getUserMedia({ audio: true, video: true })
.then((stream) => {
const tracks = stream.getTracks()
console.log("tracks before remove", tracks);
// remove both tracks
stream.removeTrack(tracks[1])
stream.removeTrack(tracks[0])
console.log("tracks after remove", stream.getTracks());
.catch((err) => {
console.log("ERROR", err);
alert("PERMISSION DENIED");
});
</script>
</body>
</html>Events
Events are simply actions that happen in the system you are programming, which the system tells you about so your code can react to them if needed. An event listener is a function that runs when a specific event occurs.
You should be aware of a few events on the MediaStream object.
- addtrack Fired when a new track object is added.
navigator.mediaDevices
.getUserMedia({ audio: true, video: true })
.then((stream) => {
stream.onaddtrack = function(event) {
// code to execute when track is added
}
.catch((err) => {
console.log("ERROR", err);
alert("PERMISSION DENIED");
});- removetrack Fired when a new track object is added.
Conclusion
The MediaStream API is beneficial and can be utilized in the applications that you build. I hope this has been informative and helped you as a web developer.
