Tensor Processing Unit (TPU)

In the vast and intricate world of artificial intelligence (AI), hardware plays a pivotal role. Just as a craftsman requires the right tools to achieve precision, AI models need specialized hardware to operate efficiently. Enter the Tensor Processing Unit (TPU), a beacon in the AI hardware landscape.

A TPU is not just another chip; it’s a specialized piece of hardware tailored to accelerate machine learning tasks. While the name might sound intricate, at its core, a TPU is designed to handle the specific mathematical computations that power AI models. This focus on a niche task allows TPUs to perform certain operations much faster than general-purpose chips.

But where did TPUs come from? The credit goes to Google. Recognizing the need for more efficient hardware to power their vast array of AI-driven services, Google took the initiative to design the TPU. It wasn’t just about creating a faster chip; it was about reimagining the foundation of AI computation. Through their pioneering efforts, Google not only elevated their own AI capabilities but also set a new standard in the realm of machine learning hardware.

In the subsequent sections, we’ll delve deeper into the intricacies of TPUs, exploring their architecture, capabilities, and the transformative impact they’ve had on the AI domain.

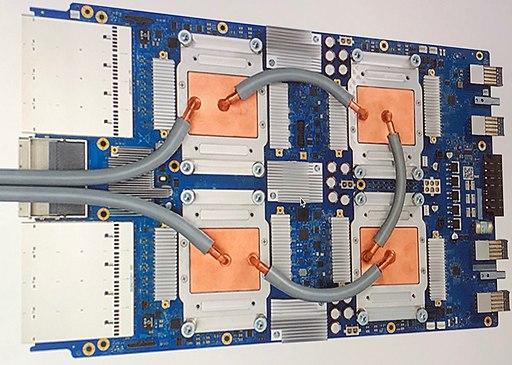

Tensor Processing Unit 3.0 by Zinskauf - Own work, CC BY-SA 4.0

What is a TPU?

In the realm of artificial intelligence (AI), the tools and technologies that power computations are as crucial as the algorithms themselves. As AI models have grown in complexity, so too has the need for specialized hardware to support them. This is where the Tensor Processing Unit (TPU) enters the scene.

TPU architecture represents a significant leap in the world of AI accelerators. Designed to handle the unique computational challenges posed by machine learning tasks, TPUs have carved out a niche for themselves, offering unparalleled performance for specific AI operations. Their ability to process vast amounts of data at breakneck speeds has made them indispensable in modern AI workflows.

Behind the development of the TPU is Google. Recognizing the limitations of traditional hardware in keeping up with the demands of evolving AI models, Google embarked on a mission to design a chip tailored for AI. The result was the TPU, a testament to Google’s commitment to pushing the boundaries of what’s possible in AI. Their pioneering efforts have not only set new benchmarks in AI computation but have also paved the way for future innovations in the domain.

As we delve deeper into the world of TPUs, we’ll explore their architecture, capabilities, and the transformative impact they’ve had on the AI landscape.

• Definition: A Tensor Processing Unit (TPU) is an AI accelerator application-specific integrated circuit (ASIC) specifically designed by Google to accelerate neural network machine learning tasks.

• Purpose: With the slowing down of Moore’s Law, there’s a growing need for specialized hardware to handle the increasing demands of AI computations. TPUs serve this purpose by offering significant improvements in performance for machine learning tasks compared to general-purpose processors like CPUs and GPUs.

• Distinction: Unlike CPUs that handle a variety of tasks and GPUs that are designed for parallel processing graphics computations, TPUs are tailored for a high volume of low precision computation, making them particularly efficient for machine learning tasks.

Historical Context

The evolution of computing hardware has always been intertwined with the demands of the software and applications they power. As these demands have grown, so too has the need for more powerful and efficient hardware. Two significant events in recent history have shaped the trajectory of hardware development for AI: the slowing down of Moore’s Law and the advent of TPUs.

End of Moore’s Law:

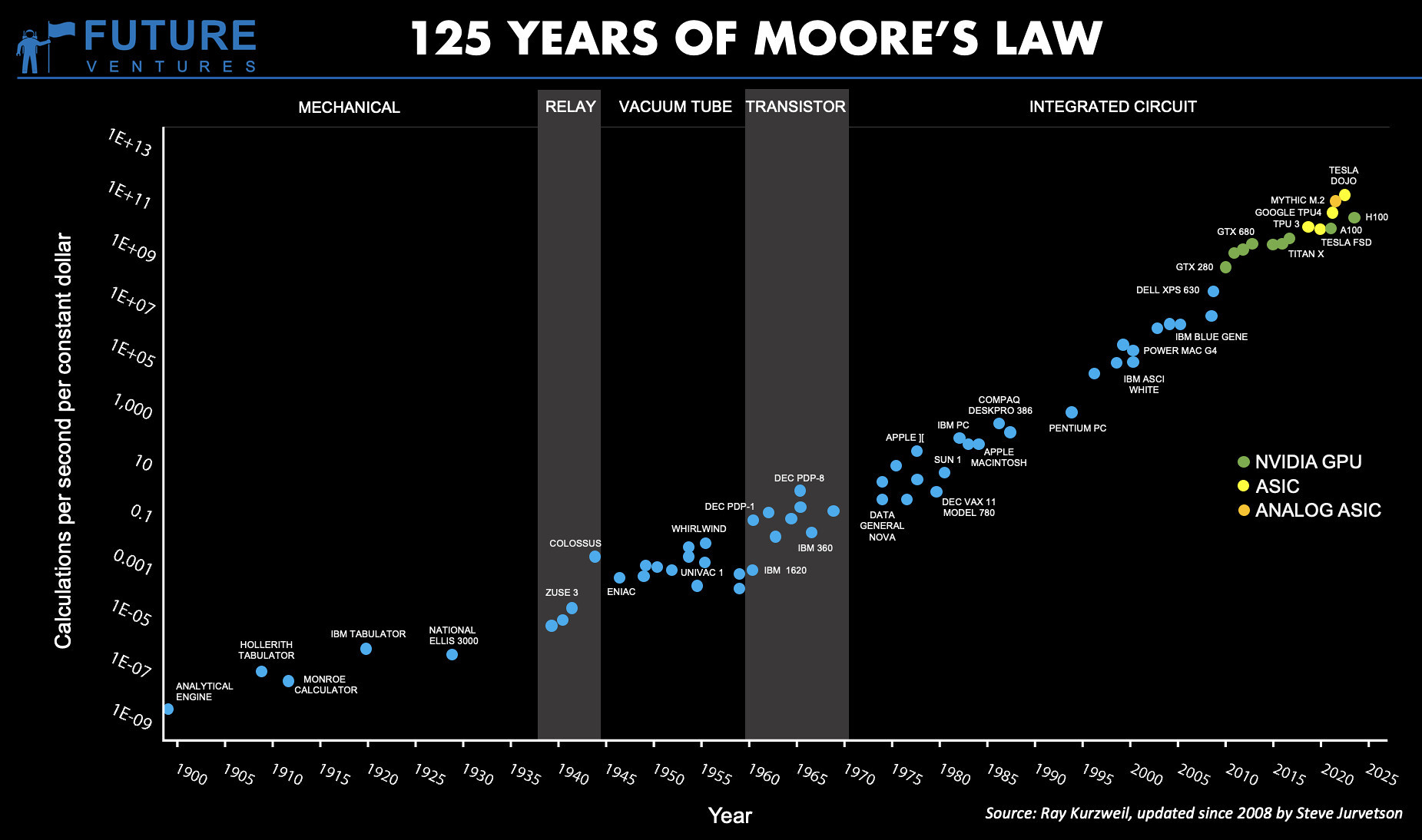

"125 Years of Moore's Law" by Steve Jurvetson is licensed under Creative Commons BY 2.0

• Origins: Coined by Gordon Moore, co-founder of Intel, in 1965, Moore’s Law predicted that the number of transistors on a microchip would double approximately every two years. This prediction held true for several decades, driving exponential growth in computing power.

• Implications: As the number of transistors increased, computers became faster, more efficient, and cheaper. This growth fueled technological advancements across various domains, including AI.

• Reaching Physical Limits: However, as we approached the physical limits of silicon-based transistors, the pace of these improvements began to slow. Shrinking transistors further started facing challenges like increased heat and quantum effects, leading to a plateau in performance improvements for general-purpose processors.

• The Need for Specialization: With the waning of Moore’s Law, it became evident that domain-specific hardware would be crucial for continued advancements, especially in fields like AI that demand high computational power.

The Advent of TPUs:

• Google’s Vision: As AI models grew in complexity, traditional hardware like CPUs and GPUs began to show their limitations. Google, with its vast array of AI-driven services, recognized the impending bottleneck and saw an opportunity to innovate.

• Design Philosophy: Instead of trying to adapt AI computations to general-purpose hardware, Google flipped the script. They set out to design a chip tailored for the unique demands of AI, particularly deep neural networks.

• Deployment and Impact: Introduced in 2015 and deployed in Google’s data centers, TPUs represented a paradigm shift. By focusing on the specific mathematical operations that power AI models, TPUs could achieve unparalleled efficiency and speed. Their introduction accelerated the training and inference times of deep neural networks, enabling breakthroughs in various AI applications.

Technical Specifications and Generations

• TPUv1: Introduced as an 8-bit matrix multiplication engine, it was primarily designed to accelerate Google’s TensorFlow framework. Manufactured on a 28 nm process, it was optimized for specific machine learning tasks.

• TPUv2: Announced in 2017, this generation saw improvements in memory bandwidth and computational power. Unlike its predecessor, which was limited to integers, TPUv2 could calculate in floating point, making it useful for both training and inference of machine learning models.

• TPUv3: Announced in 2018, this generation boasted twice the power of TPUv2 and was deployed in pods with four times as many chips, resulting in an 8-fold increase in performance per pod.

• TPUv4: Introduced in 2021, TPUv4 brought more than a 2x improvement over TPUv3, with CEO Sundar Pichai highlighting its enhanced performance metrics during the Google I/O virtual conference.

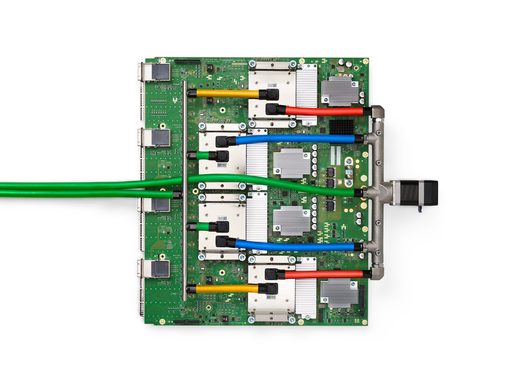

The TPU v4 package (ASIC in center plus 4 HBM stacks) and printed circuit board (PCB) with 4 liquid-cooled packages. The board's front panel has 4 top-side PCIe connectors and 16 bottom-side OSFP connectors for inter-tray ICI links. | Image by Norman P. Jouppi, George Kurian, Sheng Li, Peter Ma, Rahul Nagarajan, Lifeng Nai, Nishant Patil, SuvinaySubramanian, Andy Swing, Brian Towles, Cliff Young, Xiang Zhou, Zongwei Zhou, and David Patterson - https://arxiv.org/ftp/arxiv/papers/2304/2304.01433.pdf, CC BY 4.0,

• TPUv5: The latest generation as of 2023, with its physical layout being performed by a novel application of deep reinforcement learning.

Applications and Use Cases

Tensor Processing Units (TPUs) have found their way into a variety of applications, particularly within Google’s ecosystem. One of the prominent instances of TPU usage was during the AlphaGo matches against Lee Sedol. In these matches, TPUs were employed to handle the computational demands of the AI, contributing to its performance. Additionally, TPUs have been integrated into services like Google Photos, aiding in image processing tasks, and RankBrain, assisting in refining search algorithms.

Outside of centralized data centers, there’s a growing emphasis on localized, on-device processing. Addressing this trend, Google introduced the Edge TPU in 2018. This variant of the TPU is designed for edge computing, characterized by its smaller size and reduced power consumption. The Edge TPU is geared towards on-device machine learning applications, facilitating computations without the necessity of a constant cloud connection.

Historical Context and Development

• Acceleration of Machine Learning: At the heart of Google’s motivation was the desire to significantly accelerate machine learning workloads. With the rise of deep learning and neural networks, the computational demands skyrocketed. Traditional hardware, while capable, wasn’t optimized for the specific requirements of these tasks. Google’s TensorFlow, a symbolic math library used extensively for neural network machine learning, would benefit immensely from hardware tailored to its needs.

• Efficiency and Speed: As machine learning models grew in complexity, the time and resources required for training and inference became a bottleneck. Google recognized that general-purpose hardware, like CPUs and GPUs, had limitations when it came to the unique demands of neural network computations. There was a clear need for a more efficient solution that could deliver faster results without consuming vast amounts of power.

• Optimized Hardware Design: Instead of adapting machine learning computations to fit the constraints of existing hardware, Google took a different approach. They envisioned a chip that was custom-built for machine learning. The result was the TPU, a specialized chip designed from the ground up to offer unparalleled performance for machine learning tasks. By focusing on the specific operations that power neural networks, TPUs could achieve high performance while consuming significantly less power than traditional CPUs and GPUs.

This focus on efficiency, speed, and optimization underscores Google’s commitment to advancing the field of machine learning and ensuring that developers and researchers have the best tools at their disposal.

Technical Features and Architecture

Explanation of ASICs and their role in TPUs:

• ASICs Defined: ASIC stands for Application-Specific Integrated Circuit. Unlike general-purpose chips that are designed to handle a wide range of tasks, ASICs are custom-built for a specific application or function.

• Role in TPUs: The TPU is essentially an ASIC tailored for tensor computations, the foundational operations in many machine learning models. By focusing on a specific set of tasks, TPUs can achieve higher efficiency and performance compared to general-purpose chips. This specialization allows TPUs to handle the unique demands of machine learning workloads with greater speed and energy efficiency.

Highlighting the matrix units (MXUs), high bandwidth memory (HBM), and other unique features:

• Matrix Units (MXUs): At the heart of the TPU’s design is the Matrix Multiply Unit (MXU), which can handle large matrix operations, a common requirement in neural network computations. This capability allows TPUs to process vast amounts of data in parallel, significantly accelerating machine learning tasks.

• High Bandwidth Memory (HBM): TPUs incorporate HBM, which provides faster access to data compared to traditional memory architectures. This design choice ensures that the MXU is consistently fed with data, minimizing potential bottlenecks and maximizing computational throughput.

• Other Features: TPUs also boast features like reduced precision arithmetic, which allows them to handle computations with lower precision without compromising the accuracy of machine learning models. This approach further enhances their speed and efficiency.

Discussion on the topology of TPUs and their integration with platforms like TensorFlow:

TPU Topology:

• Design Philosophy: At the core of the TPU’s design is the idea of optimizing data flow for machine learning tasks. Machine learning, especially deep learning, requires vast amounts of data to be processed in parallel. The TPU’s architecture is tailored to meet these demands efficiently.

• Pods and Clusters: One of the standout features of TPUs is their deployment in “pods.” A TPU pod is essentially a cluster of TPUs networked together to function as a cohesive unit. This clustering allows for the parallel processing of data, significantly accelerating the training of large-scale machine learning models.

• Scalability: The modular design of TPU pods ensures scalability. As computational demands grow, additional TPUs can be added to existing pods, or new pods can be deployed. This flexibility ensures that the infrastructure can adapt to the ever-evolving demands of machine learning projects.

• Data Flow Optimization: The interconnection between TPUs in a pod is designed to optimize data flow, ensuring that there are minimal bottlenecks. This design choice ensures that each TPU in a pod can access the data it needs without delay, maximizing computational throughput.

Integration with TensorFlow:

• Origins: Google’s TensorFlow, an open-source machine learning framework, was a significant factor behind the inception of TPUs. The need to accelerate TensorFlow computations, especially for large neural networks, was a driving force in the TPU’s development.

• Deep Integration: TPUs are not just compatible with TensorFlow; they are deeply integrated with it. This integration means that TensorFlow can take full advantage of the TPU’s architecture, from its matrix multiplication capabilities to its optimized data flow design.

• Ease of Transition: For developers already using TensorFlow, the transition to TPUs is designed to be seamless. While there are some considerations to keep in mind, such as ensuring that the model fits within the TPU’s memory, the majority of TensorFlow code can run on TPUs without extensive modifications.

• Training and Inference: The integration extends to both the training and inference phases of machine learning. Models can be trained on TPUs, benefiting from the accelerated computations, and once trained, these models can be inferred on TPUs, ensuring rapid response times in real-world applications.

Performance and Efficiency

Comparative performance metrics

• **Baseline Comparisons: Traditional CPUs, while versatile, are general-purpose processors designed to handle a wide range of tasks. GPUs, on the other hand, are tailored for parallel processing, making them suitable for graphics rendering and some machine learning tasks. However, when it comes to specific operations like matrix multiplications and certain neural network computations, TPUs have a distinct advantage.

• Metrics: In terms of raw performance, TPUs have been reported to achieve up to 30-80 times the performance improvements over contemporary CPUs and GPUs for specific machine learning tasks. This doesn’t mean TPUs are universally faster, but for tasks they’re designed for, the difference is substantial.

• Latency and Throughput: TPUs are designed to reduce latency and increase throughput for machine learning computations. This results in faster model training times and quicker inference, which is especially crucial for real-time applications.

Emphasis on the speed and efficiency gains when using TPUs for machine learning tasks:

• Tailored Design: The architecture of TPUs, with their Matrix Multiply Units (MXUs) and high bandwidth memory, is specifically tailored for the heavy computational demands of machine learning. This design ensures that TPUs can handle vast amounts of data in parallel, significantly reducing the time required for computations.

• Energy Efficiency: One of the standout features of TPUs is their energy efficiency. They can perform more computations per watt of power consumed compared to traditional CPUs and GPUs. This efficiency is not just beneficial in terms of power savings but also translates to reduced heat generation, which can be a concern in data centers.

• Real-world Applications: The benefits of TPUs are evident in real-world applications. For instance, when Google deployed TPUs for their Street View image processing, they reported a significant reduction in the time required to process the images. Similarly, for large-scale neural network training, TPUs have slashed training times from days to hours.

Optimal Use Cases for TPUs

Scenarios where TPUs shine:

• Large Models: TPUs are designed to handle the computational demands of large machine learning models. Deep neural networks, with their multiple layers and vast number of parameters, can benefit immensely from the parallel processing capabilities of TPUs. This is especially true for models like transformers, which have seen a surge in popularity in recent years.

• Extensive Batch Sizes: One of the strengths of TPUs is their ability to process large batches of data simultaneously. For machine learning tasks where extensive batch sizes are preferred, TPUs can offer significant speedups, ensuring that the model converges faster during training.

• Matrix-Dominated Tasks: At the heart of the TPU’s design is its Matrix Multiply Unit (MXU). This makes TPUs particularly well-suited for tasks dominated by matrix multiplications, a common operation in many machine learning algorithms. Whether it’s the forward or backward pass during neural network training, TPUs can handle these matrix operations with high efficiency.

Limitations and challenges of TPUs:

• Framework Support: While TPUs are deeply integrated with TensorFlow, support for other popular machine learning frameworks might not be as robust. Developers using other frameworks might need to make modifications to their code or rely on specific libraries to harness the power of TPUs.

• Unsupported Operations: TPUs are specialized hardware, and while they excel at certain tasks, there are operations they might not support or might handle less efficiently than CPUs or GPUs. For instance, certain custom operations or specific data manipulation tasks might be better suited for other types of hardware.

• Memory Constraints: While TPUs come with high bandwidth memory, the on-chip memory is limited. Models with extremely large embeddings or those that require vast amounts of memory might face challenges when deployed on TPUs.

• Adaptation Overhead: Transitioning from CPUs or GPUs to TPUs might require developers to rethink certain aspects of their machine learning pipelines. This could include adjusting batch sizes, redefining data input pipelines, or tweaking model architectures to be more TPU-friendly.

TPUs in the Cloud

Introduction to Google Cloud TPUs and their advantages:

• Google Cloud TPUs: Google Cloud TPUs are custom-designed AI accelerators optimized for both training and inference of large AI models. They cater to a wide range of applications, including chatbots, code generation, media content generation, synthetic speech, vision services, recommendation engines, and personalization models.

• Advantages of Cloud TPUs:

  • Versatility: Cloud TPUs are designed to be versatile, catering to a wide range of AI workloads. They support leading AI frameworks, including PyTorch, JAX, and TensorFlow.

  • Scalability: Cloud TPUs can be seamlessly orchestrated for large-scale AI workloads through their integration in Google Kubernetes Engine (GKE).

  • Cost-Efficiency: Cloud TPUs offer a cost-efficient solution for AI workloads, spanning training, fine-tuning, and inference. They provide high performance at a reduced cost compared to other solutions.

  • Integration with Vertex AI: For those seeking a simplified AI development process, Cloud TPUs can be deployed with Vertex AI, a fully-managed AI platform by Google.

TPUs vs. GPUs: A Comparative Analysis

Delving deeper into the distinctions between TPUs and GPUs:

Design Philosophy:

• TPUs: Tensor Processing Units (TPUs) are application-specific integrated circuits (ASICs) designed explicitly by Google for neural network computations. They possess specialized features, such as the Matrix Multiply Unit (MXU) and a proprietary interconnect topology, making them ideal for accelerating AI training and inference.

• GPUs: Graphics Processing Units (GPUs), initially designed for manipulating computer graphics, have a parallel structure that makes them suitable for algorithms processing large data blocks, commonly found in AI workloads.

Performance:

• TPUs: TPUs are tailored for specific operations like matrix multiplications, which are common in many machine learning algorithms. They can achieve significant performance improvements over CPUs and GPUs for these specific tasks.

• GPUs: While GPUs are versatile and can handle a variety of tasks, they might not always match the raw performance of TPUs for specific machine learning operations. However, for broader tasks and certain neural network architectures, GPUs remain a preferred choice.

Memory and Bandwidth:

• TPUs: TPUs come with high bandwidth memory, ensuring rapid data access during computations. However, the on-chip memory might be limited, which can be a constraint for models with large embeddings.

• GPUs: GPUs typically have a larger memory pool, making them suitable for tasks that require extensive memory access or storage.

Discussion on scenarios where one might be preferred over the other:

• Large-Scale Neural Network Training: For training large neural networks, especially those dominated by matrix multiplications, TPUs are often the preferred choice due to their specialized architecture and high computational throughput.

• Versatility and Broad Tasks: For tasks that require versatility and aren’t strictly dominated by matrix operations, GPUs might be more suitable. Their design allows them to handle a broader range of operations efficiently.

• Framework Support: While TPUs are deeply integrated with TensorFlow, GPUs have broader support across various machine learning frameworks. Developers using non-TensorFlow frameworks might find GPUs more accessible and versatile.

• Cost and Availability: TPUs, being specialized hardware, might not be as widely available as GPUs and could be more expensive in certain scenarios. However, for tasks they’re designed for, the cost-to-performance ratio of TPUs can be highly favorable.

• Real-time Inference: For applications that require real-time inference, especially in edge devices, the choice between TPUs and GPUs might come down to factors like power consumption, heat generation, and latency. Both have their strengths, and the choice would depend on the specific requirements of the application.

Future Prospects and Evolving Landscape

Potential future support for other frameworks beyond TensorFlow:

• Growing Demand: As the AI community continues to diversify its toolkit, there’s a growing demand for hardware support across various frameworks. While TensorFlow remains a dominant player, frameworks like PyTorch, JAX, and others are gaining traction.

• Google’s Response: Recognizing this trend, Google might expand TPU support to cater to a broader audience. This would not only increase the adoption rate of TPUs but also strengthen Google’s position in the AI hardware market.

• Community Initiatives: Open-source communities play a pivotal role in the AI ecosystem. There might be community-driven initiatives to develop libraries or tools that bridge the gap between TPUs and other frameworks, even before official support is announced.

Speculation on the next iterations of TPUs and their impact on the AI development landscape:

• Performance Enhancements: As with any technology, we can expect future iterations of TPUs to offer even better performance metrics. This could be achieved through architectural refinements, increased memory bandwidth, or the introduction of new specialized units.

• Energy Efficiency: As data centers grapple with power consumption challenges, future TPUs might focus even more on energy efficiency, offering more computations per watt and reducing the overall carbon footprint of AI operations.

• Versatility: While TPUs are specialized hardware, there’s potential for them to support a broader range of operations in the future, making them more versatile and appealing to a wider range of AI developers.

• Integration with Emerging Technologies: As the AI landscape evolves, with trends like quantum computing and neuromorphic computing on the horizon, TPUs might adapt to integrate or complement these emerging technologies.

• Affordability and Accessibility: One of the challenges with specialized hardware is its cost. Future iterations might focus on making TPUs more affordable, allowing smaller enterprises and individual developers to harness their power.

Conclusion

The Evolutionary Role of TPUs in the AI Ecosystem:

The world of artificial intelligence is akin to an ever-evolving organism, with each component, be it algorithms, data, or hardware, playing a crucial role in its growth. Among these, Tensor Processing Units (TPUs) have emerged as a revolutionary force. Born out of the necessity to handle the burgeoning computational demands of deep learning models, TPUs have not just been another addition to the AI hardware lineup. They’ve fundamentally reshaped the landscape.

Performance and Efficiency: Traditional hardware solutions, while powerful, often hit bottlenecks when subjected to the intense matrix operations characteristic of deep learning. TPUs, with their specialized Matrix Multiply Units (MXUs) and high bandwidth memory, brought a paradigm shift. They offered the ability to perform many calculations simultaneously, drastically reducing the time required to train large models.

Specialized Yet Versatile: While TPUs are application-specific integrated circuits (ASICs), their design isn’t rigid. They’re tailored for AI but have the adaptability to cater to a spectrum of machine learning tasks, from neural network training to real-time inference.

The Road Ahead: Navigating the Future of AI Accelerators:

Innovation at the Horizon: The current capabilities of TPUs are impressive, but they’re just the tip of the iceberg. As AI models grow in complexity and size, the demands on hardware will intensify. Future iterations of TPUs will likely delve deeper into energy efficiency, versatility, and integration with emerging technologies.

The Broader AI Accelerator Landscape: While TPUs have been game-changers, they’re part of a broader ecosystem of AI accelerators. GPUs, FPGAs, and other specialized chips each have roles to play. The synergy between these components will define the next wave of AI advancements.

Staying Informed: For professionals and enthusiasts alike, the dynamic world of AI hardware presents both challenges and opportunities. As TPUs and other accelerators evolve, they’ll open doors to new possibilities—more accurate models, real-time analytics, and AI-driven solutions that we’ve yet to imagine. But harnessing these opportunities requires staying updated. The pace of change in the AI world is relentless, and being informed is the key to riding the wave.
